FireWALL 63/120/S50
In addition to the fire and sound benefits, the JUMBO FireWALL 63/120/S50 weighs less than 48 kg/m2 offering a substantial 10% saving in weight which contributes significantly to further lowering building costs.
SANS FIRE TEST
Fire Systems are rated to withstand a fire under test conditions for a certain period of time. This is known as the fire resistance level (FRL) and consists of three main evaluation criteria: 1) Stability: The ability to maintain stability 2) Integrity: The ability to resist the passage of flames as specified 3) Insulation: The ability to maintain a temperature over the whole of the exposed surface below that specified in the test standards.
Test report number FTC 12/101b concludes 'The Pelican drywall specimen as tested achieved a Fire Resistance rating of 120 minutes for non-load bearing applications'
Pelican Systems fire resistant JUMBO boards (FR) are specially developed to offer superior fire resistance performance when used as cladding on drywall partitions and ceiling systems.
IDEAL FOR USE IN: Healthcare, Education, Commercial, Residential & Hospitality
Product List

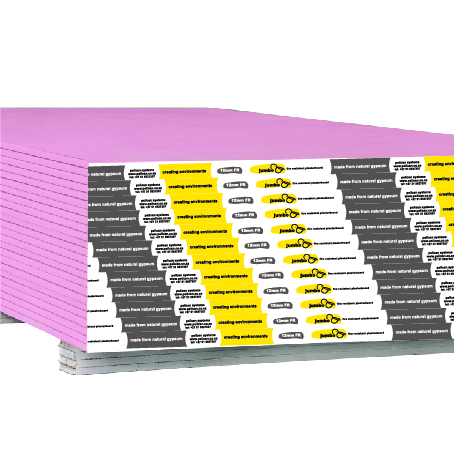

- JUMBO Plasterboard Fire Resistant TE
Tapered Edge
15mm X 2700 X 1200 - JUMBO Plasterboard Fire Resistant TE
Tapered Edge
15mm X 3000 X 1200 - JUMBO Plasterboard Fire Resistant TE
Tapered Edge
15mm X 3600 X 1200
Product Information
795 in stockR514.19 Each
JB5XRIA2
Thickness: 15mm
Length: 2700
Width: 1200
Colour / Edge Detail: Tapered Edge
Stocking UOM: EA
Mass per Stocking UOM (kg): 37.45
Qty Per Carton: 60
Technical Information
Material Description: Fire Resistant Gypsum Core + Paper Lining
Fire Classification: Non-combustible
R-Value: 0.071m² K/W
Product Information
320 in stockR571.32 Each
JB5XRIA3
Thickness: 15mm
Length: 3000
Width: 1200
Colour / Edge Detail: Tapered Edge
Stocking UOM: EA
Mass per Stocking UOM (kg): 39.35
Qty Per Carton: 60
Technical Information
Material Description: Fire Resistant Gypsum Core + Paper Lining
Fire Classification: Non-combustible
R-Value: 0.071m² K/W
Product Information
239 in stockR685.58
JB5XRIA5
Thickness: 15mm
Length: 3600
Width: 1200
Colour / Edge Detail: Tapered Edge
Qty Per Carton: 50
Technical Information
Material Description: Fire Resistant Gypsum Core + P
Fire Classification: Non-combustible
R-Value: 0.071m² K/W
